NTG-8

Broadcast Quality RF-bias Shotgun Microphone

cleansed_1

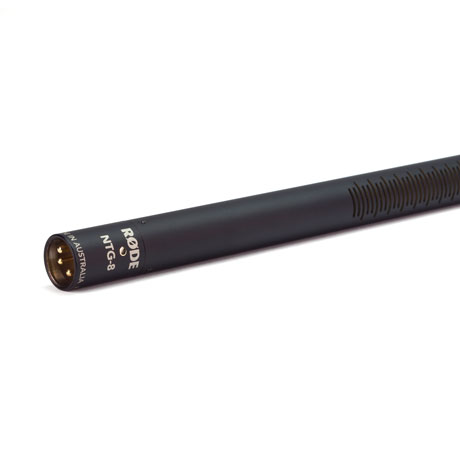

Based on RØDE's award winning NTG3, the NTG8 is a broadcast quality RF-bias shotgun microphone that exhibits increased directionality across a wide frequency response range. This makes the NTG8 the perfect microphone for film, television, sports and outdoor broadcasting, live performance, and any professional distance miking application.

Like the NTG3, the NTG8 features low self-noise, natural sound without colouration both on and off-axis, and RF bias technology to ensure that it is almost completely resistant to high humidity environments which could cause other condenser microphones to fail.

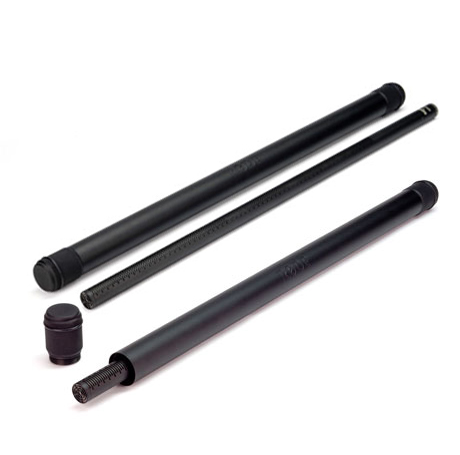

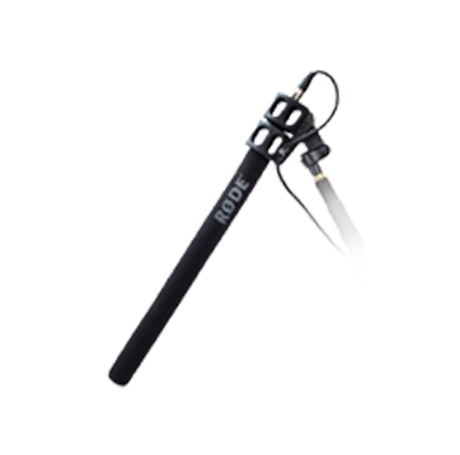

The NTG-8 is finished in matte black and supplied with a specially designed shock mount (SM8) that is engineered to provide excellent handling noise isolation, cable management and versatile mounting options for the microphone. A rugged weatherproof aluminium cylinder is also included, providing ultimate protection for the microphone when in transport or storage. The WSNTG8 windshield completes the package, providing light environmental protection.

The NTG-8 microphone is covered by RØDE Microphones' industry leading 10 year warranty.

Specification:

Datasheet Download

Acoustic Principle

Line Gradient

Active Electronics

RF Bias

Capsule

0.50"

Polar Pattern

Omnidirectional

Address Type

End

Frequency Range

40Hz - 20kHz

Output Impedance

2 ohm

Maximum SPL

124dB SPL (@ 1kHz, 1% THD into 1KΩ load)

Maximum Output Level

8.2dBu (@ 1kHz, 1% THD into 1KΩ load)

Sensitivity

-20dB re 1 Volt/Pascal (1.60mV @ 94 dB SPL) +/- 2 dB @ 1kHz

Power Options

spec-p48(44~52V min 5mA)

Weight

345.00gm

Dimensions

559.00mmH x 22.00mmW x 22.00mmD

Output

XLR Output

warranty

One year from date of purchase. Warranty can be extended to five years, ten years or lifetime. (subject to terms & conditions)

Included Accessories

SM8WSNTG8RCNTG8

Optional Accessories

Blimp Extension
