Multi-Powered Condenser Shotgun Microphone

snowdogs

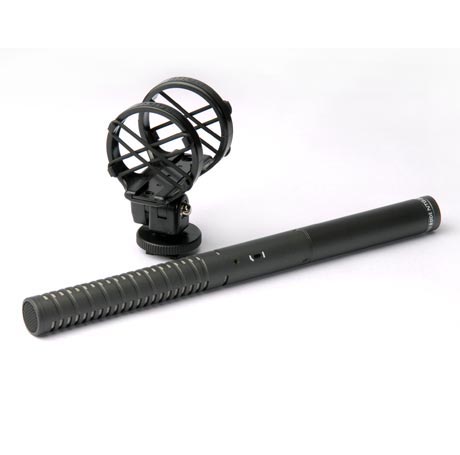

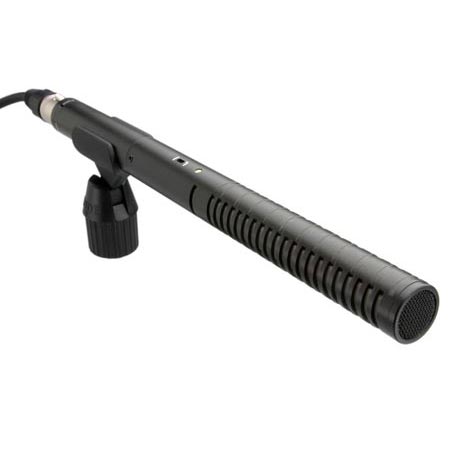

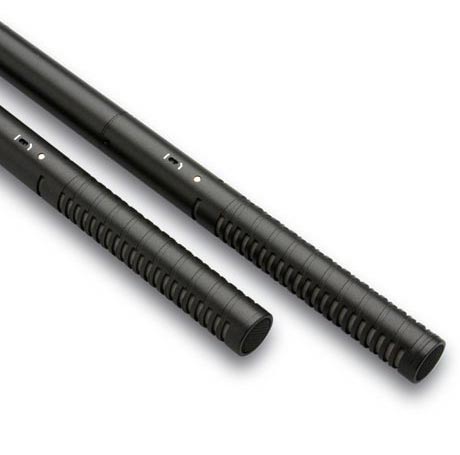

The RØDE NTG2 is a lightweight condenser shotgun microphone, designed for professional applications within the film, video, television and production industries.

Its full frequency response, low noise and audio transparency make it an ideal film, video, and voice over microphone, while its low weight (161gm/5.7oz without battery) makes it an ideal boom microphone.

In addition to the NTG2 native 20Hz-20kHz response a selectable high-pass filter at 80Hz is available, which will prevent low end noise such as air conditioners and traffic from being recorded.

The NTG2 operates either from a AA (1.5V) battery or P48 phantom power which can be supplied by professional cameras, audio recorders and power supplies.

The WSVM windshield is supplied to minimise light wind noise and plosives during recording. The optional 'DeadCat' furry is recommended for outdoor applications.

The RØDE NTG2 shotgun microphone is covered by RØDE Microphones' industry leading 10 year warranty.

Specification:

Datasheet Download

Acoustic Principle

Pressure Gradient

Active Electronics

JFET impedance converter with bipolar output buffer

Capsule

0.50"

Polar Pattern

Omnidirectional

Address Type

End

Frequency Range

20Hz - 20kHz

Output Impedance

250 ohm

Maximum SPL

131dB SPL (@ 1kHz, 1% THD into 1KΩ load)

Maximum Output Level

6.9dBu (@ 1kHz, 1% THD into 1KΩ load)

Sensitivity

-36dB re 1 Volt/Pascal (1.60mV @ 94 dB SPL) +/- 2 dB @ 1kHz

Power Options

spec-p48spec-AA

Weight

161.00gm

Dimensions

280.00mmH x 22.00mmW x 22.00mmD

Output

XLR Output

warranty

One year from date of purchase. Warranty can be extended to five years, ten years or lifetime. (subject to terms & conditions)

Included Accessories

ZP1RM5WSVM

Optional Accessories

SM3SM4SM5BlimpWS6PG2DS1Deadcat
