NTG-1

Condenser Shotgun Microphone

mick_jones_genesis

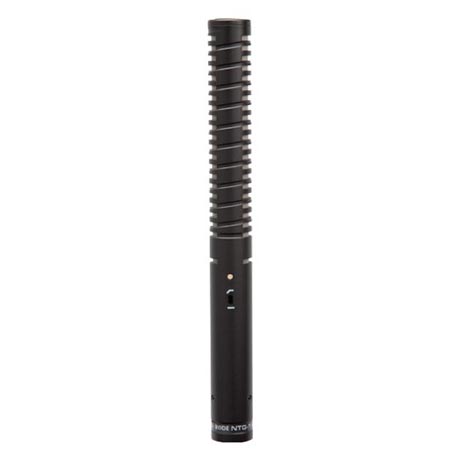

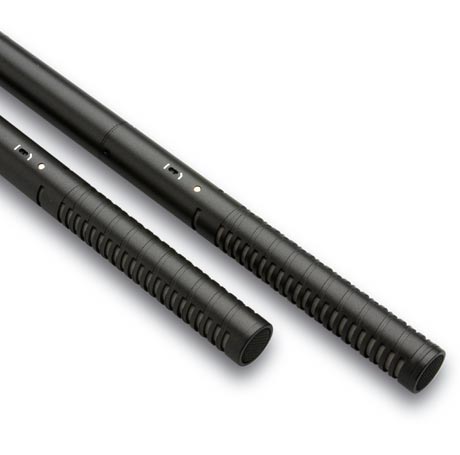

The RØDE NTG1 is a lightweight condenser shotgun microphone, designed for professional applications within the film, video, television and production industries.

Its full frequency response, low noise and audio transparency make it an ideal film, video, and voice over microphone, while its low weight (105gm/3.7oz) makes it an ideal boom microphone.

In addition to the NTG1 native 20Hz-20kHz response a selectable high-pass filter at 80Hz is available, which will prevent low end noise such as air conditioners and traffic from being recorded.

The WSVM windshield is supplied to minimise light wind noise and plosives during recording. The optional 'DeadCat' furry is recommended for outdoor applications.

The RØDE NTG1 shotgun microphone is covered by RØDE Microphones' industry leading 10 year warranty.

Specification:

Datasheet Download

Acoustic Principle

Pressure Gradient

Active Electronics

JFET impedance converter with bipolar output buffer

Capsule

0.50"

Polar Pattern

Omnidirectional

Address Type

End

Frequency Range

20Hz - 20kHz

Output Impedance

50 ohm

Maximum SPL

139dB SPL (@ 1kHz, 1% THD into 1KΩ load)

Maximum Output Level

6.9dBu (@ 1kHz, 1% THD into 1KΩ load)

Sensitivity

-36dB re 1 Volt/Pascal (1.60mV @ 94 dB SPL) +/- 2 dB @ 1kHz

Power Options

spec-p24spec-p48

Weight

150.00gm

Dimensions

219.00mmH x 22.00mmW x 22.00mmD

Output

XLR Output

warranty

One year from date of purchase. Warranty can be extended to five years, ten years or lifetime. (subject to terms & conditions)

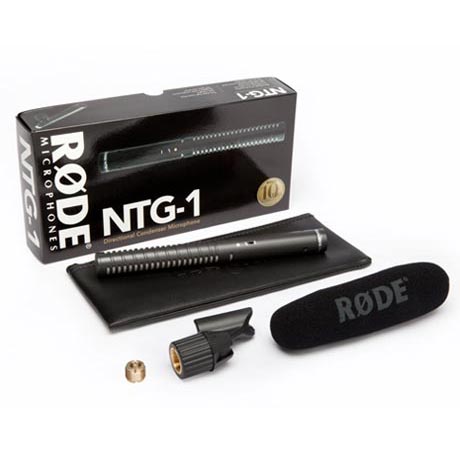

Included Accessories

ZP1RM5WSVM

Optional Accessories

SM3SM4SM5BlimpWS6PG2DS1Deadcat
